Volcano plot for differential deuterim uptake between two biological states

Usage

plot_volcano(
  p_dat,
  state_1 = "",
  state_2 = "",
  adjust_axes = TRUE,
  show_confidence_limits = FALSE,
  confidence_level = 0.98,
  color_times = TRUE,
  show_insignificant_grey = FALSE,
  hide_insignificant = FALSE,
  fractional = FALSE,
  theoretical = FALSE,
  interactive = getOption("hadex_use_interactive_plots")
)

Arguments

p_dat

data produced by the create_p_diff_uptake_dataset function

state_1

selected biological state for given protein

state_2

selected biological state for given protein

adjust_axes

logical, indicator if the X-axis is symmetrical in relation to 0

show_confidence_limits

logical, indicates if the hybrid test confidence levels are shown

confidence_level

confidence level for the test, from range [0, 1]. It should be the same as used to prepare p_dat

color_times

logical, indicator if different time points are distinguishable by color

show_insignificant_grey

logical, indicator if the values not passing the test are shown in grey

hide_insignificant

logical, indicator if the values not passing the test are hidden

fractional

logical, indicator if values are shown in fractional form

theoretical

logical, indicator if values are calculated using theoretical controls

interactive

logical, whether plot should have an interactive layer created with with ggiraph, which would add tooltips to the plot in an interactive display (HTML/Markdown documents or shiny app).

Value

a ggplot object

Details

The function plot_volcano generates the volcano plot based on supplied p_dat. On X-axis there is differential deuterium uptake in selected form. On Y-axis there is the P-value from t-Student test between two biological states. Based on selected confidence level, the confidence limits are calculated to indicate statistically significant values - shown as red dotted lines. The values that are in upper left and right corners pass the hybrid test.

References

Hageman, T. S. & Weis, D. D. Reliable Identification of Significant Differences in Differential Hydrogen Exchange-Mass Spectrometry Measurements Using a Hybrid Significance Testing Approach. Anal Chem 91, 8008–8016 (2019).

Houde, D., Berkowitz, S.A., and Engen, J.R. (2011). The Utility of Hydrogen/Deuterium Exchange Mass Spectrometry in Biopharmaceutical Comparability Studies. J Pharm Sci 100, 2071–2086.

Examples

p_dat <- create_p_diff_uptake_dataset(alpha_dat)

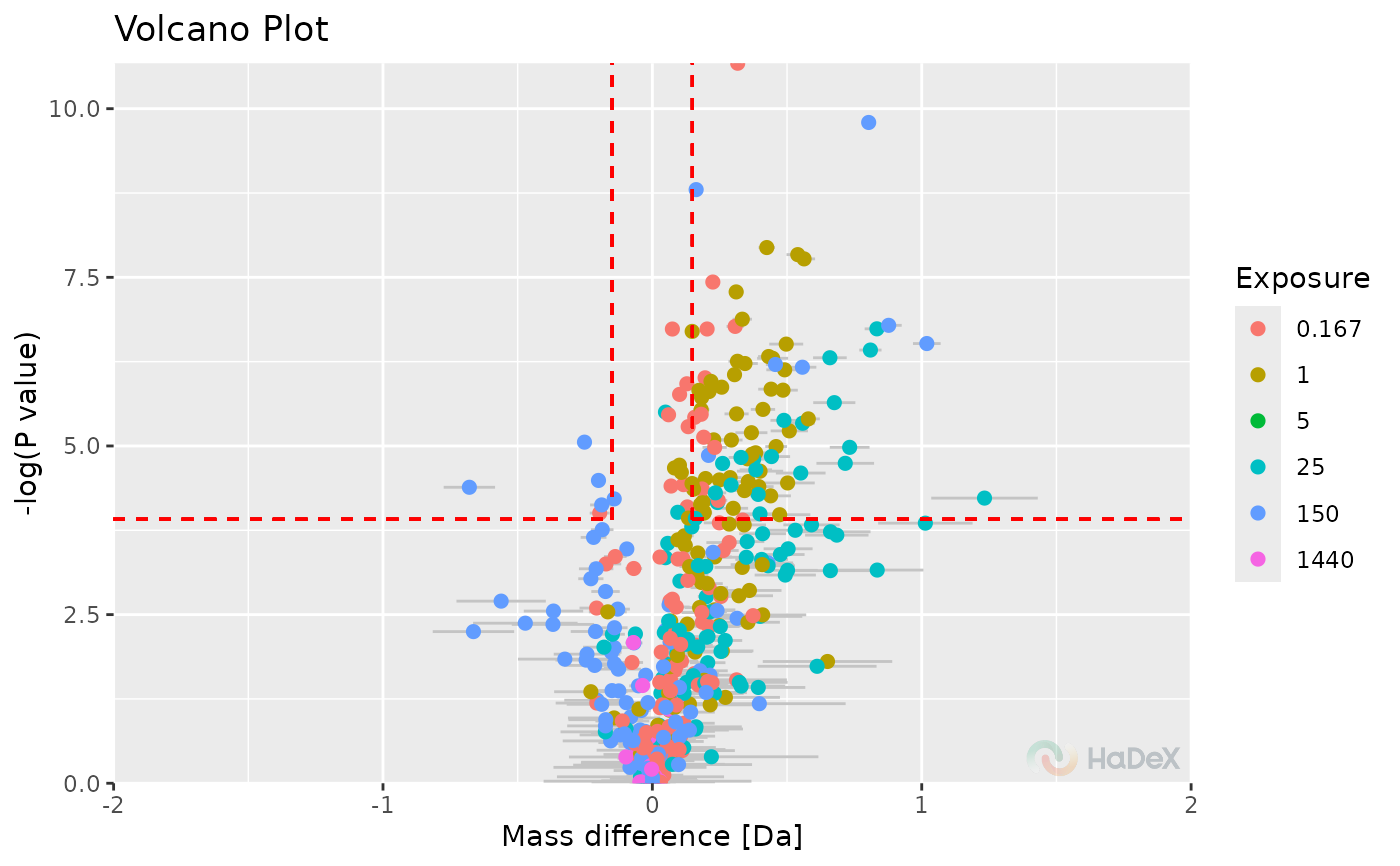

plot_volcano(p_dat, show_confidence_limits = TRUE)
#> Warning: All aesthetics have length 1, but the data has 636 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: All aesthetics have length 1, but the data has 636 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: All aesthetics have length 1, but the data has 636 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: All aesthetics have length 1, but the data has 636 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: Removed 191 rows containing missing values or values outside the scale range
#> (`geom_point()`).

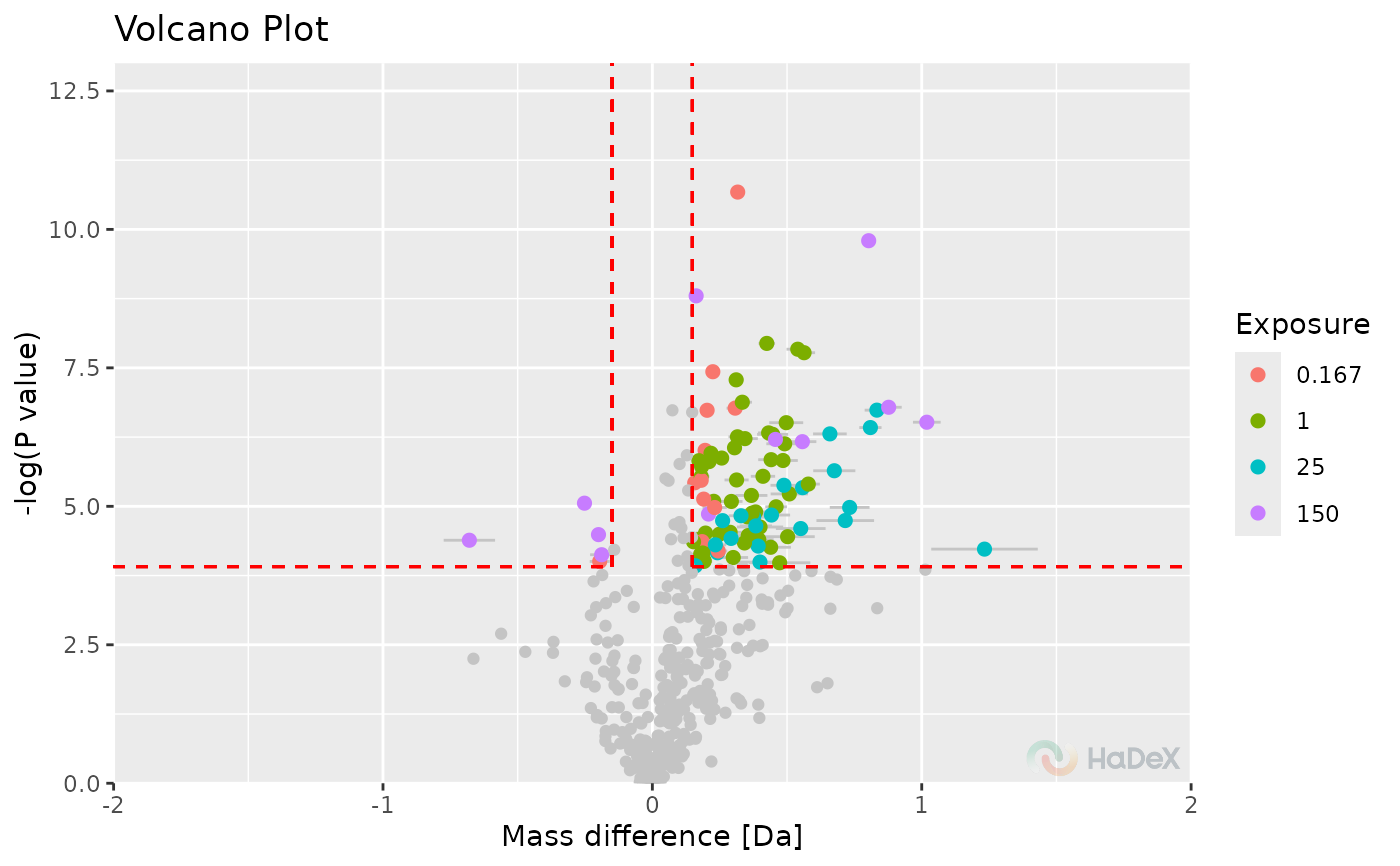

plot_volcano(p_dat, show_confidence_limits = TRUE, show_insignificant_grey = TRUE)
#> Warning: All aesthetics have length 1, but the data has 94 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: All aesthetics have length 1, but the data has 94 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: All aesthetics have length 1, but the data has 94 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: All aesthetics have length 1, but the data has 94 rows.
#>  Please consider using `annotate()` or provide this layer with data containing
#>   a single row.
#> Warning: Removed 116 rows containing missing values or values outside the scale range
#> (`geom_point()`).

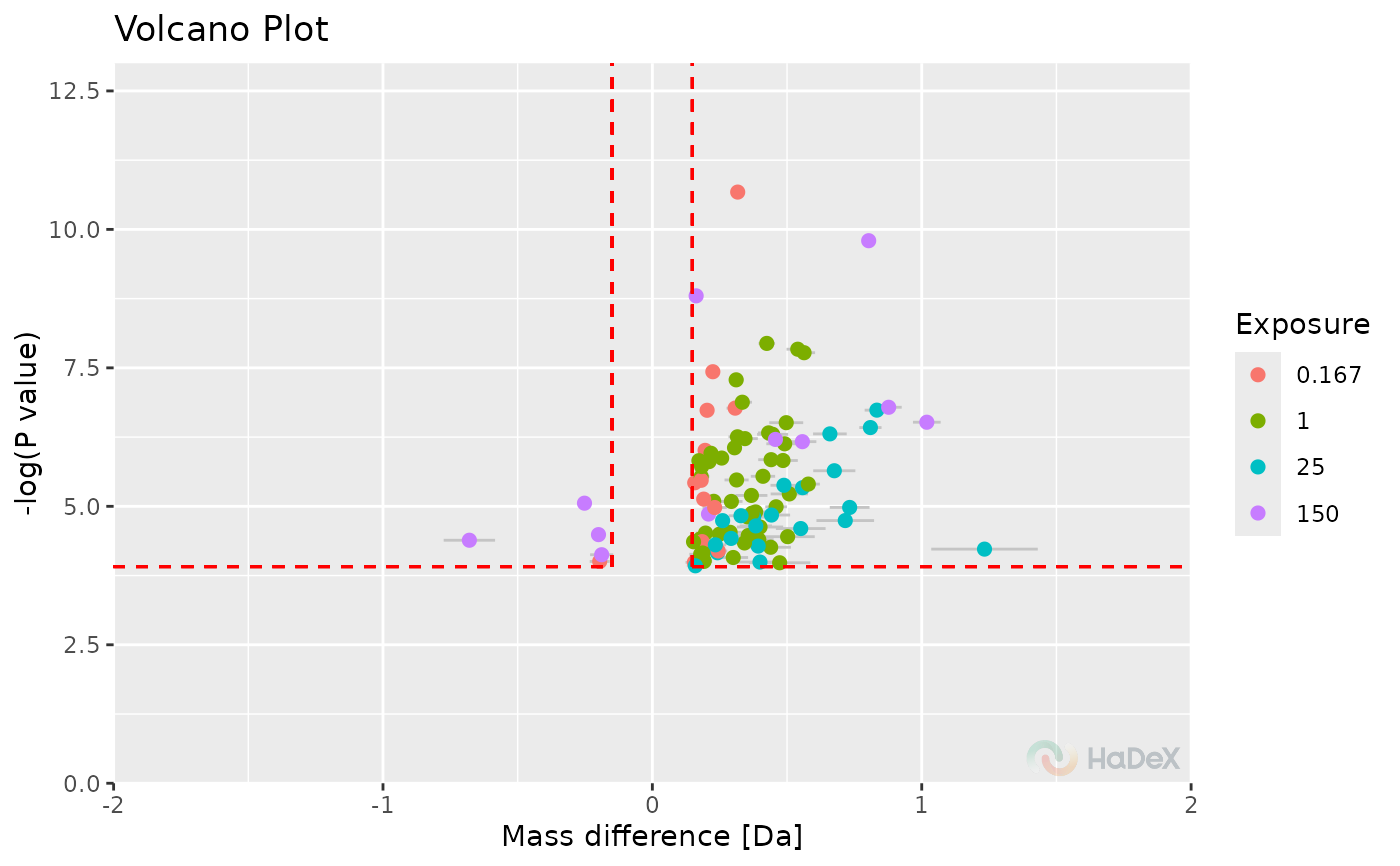

plot_volcano(p_dat, show_confidence_limits = TRUE, hide_insignificant = TRUE)
